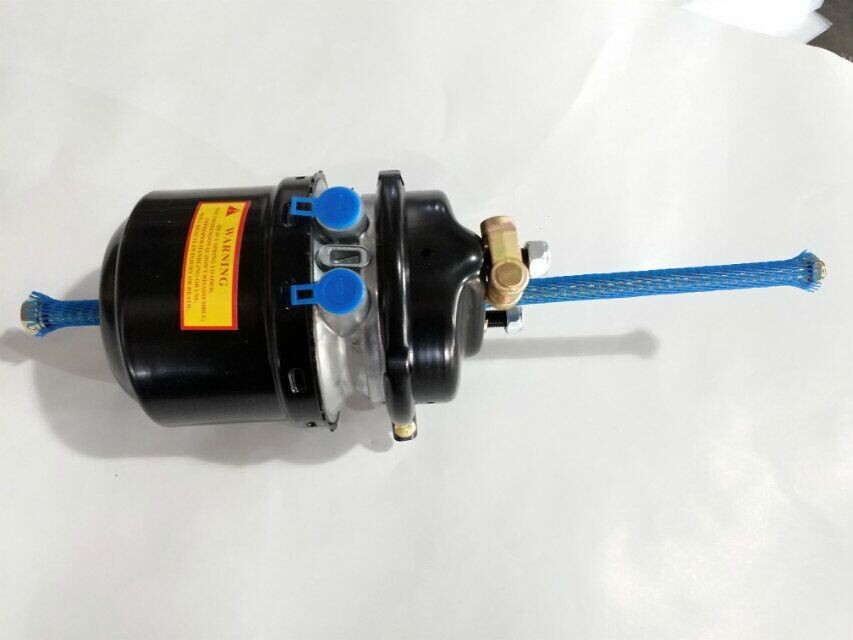

9254911410 BRAKE CHAMBER T2424

Name:9254911410 BRAKE CHAMBER T2424

Specifications:

• Product Category
  Device
• Bolt lengths
  43.0 mm
• Bolt threads
  M16 x 1.5
• Comments
  Universal-Tristop-Zylinder needs additional accessories (Link): 423 000 901 2
• Distance between bolts
  120.6 mm
• Max. operating pressure
  10.2/8.5 bar
• Output force 3
  8700 N
• Output force M
  8700 N
• Port thread 11
  M16 x 1.5
• Port thread 12
  M16 x 1.5
• Port threads
  M16 x 1.5 . M22 x 1.5
• Push-rod length
  250 mm
• Push-rod thread
  M16 x 1.5
• Release pressure
  5.1 bar
• Return-spring force
  250 N
• Stroke
  57/57 mm
• Temperature range
  -40°C to +80°C
• Thread length
  250 mm
• Total length
  252.0 mm
• Type
  24/24 IBV
• Type of operation
  Cam
• Version
  With boot
• Yoke
  Without
• Calculated Volume (dm³)
  22.167
• Size (mm x mm x mm)
  589 x 193 x 195
• UPC
  193133448181
• Weight (kg)
  8.632
• Weight (lb)
  19.03
• MOQ:50PCS
