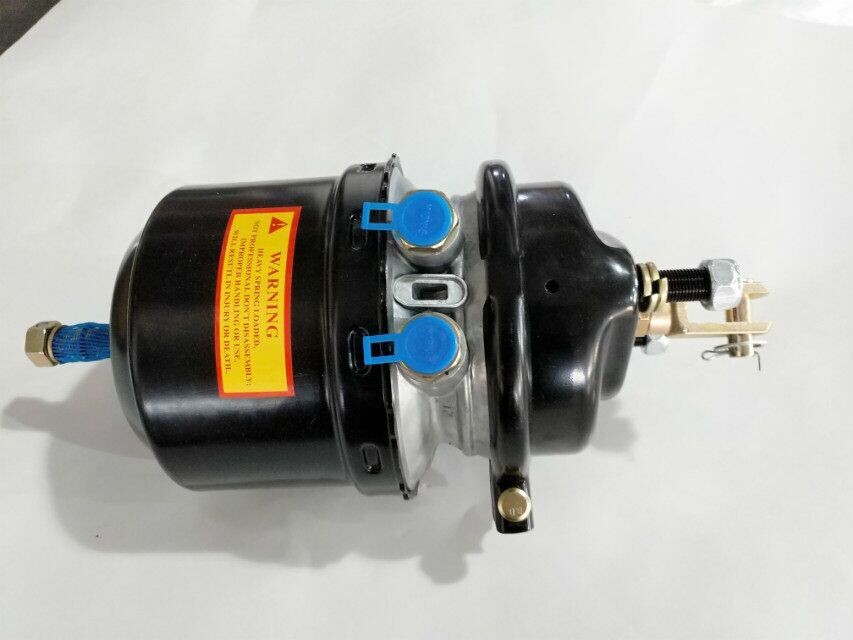

9254300360 BRAKE CHAMBER T2024

9254300360 BRAKE CHAMBER T2024

Specifications:

• Bolt lengths
  1.65 in
• Bolt threads
  M16 x 1.5
• Clevis pin
  0.63 in
• Distance between bolts
  4.75 in
• Max. operating pressure
  152.29 / 123.28 psi
• Output force 3
  1978.32 lbf
• Output force M
  1416.30 lbf
• Port thread 11
  M16 x 1.5
• Port threads
  M16 x 1.5
• Push-rod length
  2.76 in
• Release pressure
  71.07 psi
• Return-spring force
  49.46 lbf
• Stroke
  2.56 / 2.56 in
• Temperature range
  -40 to + 185° F
• Total lenght
  10.83 in
• Type
  20/24
• Type of operation
  Cam
• Version
  Without boot
• Yoke
  Screwed: 895 802 090 4
• Size (mm x mm x mm)
  0 x 0 x 0
• UPC
  193133351917
• Weight (kg)
  8.75
• Weight (lb)
  19.29
• MOQ:50PCS
