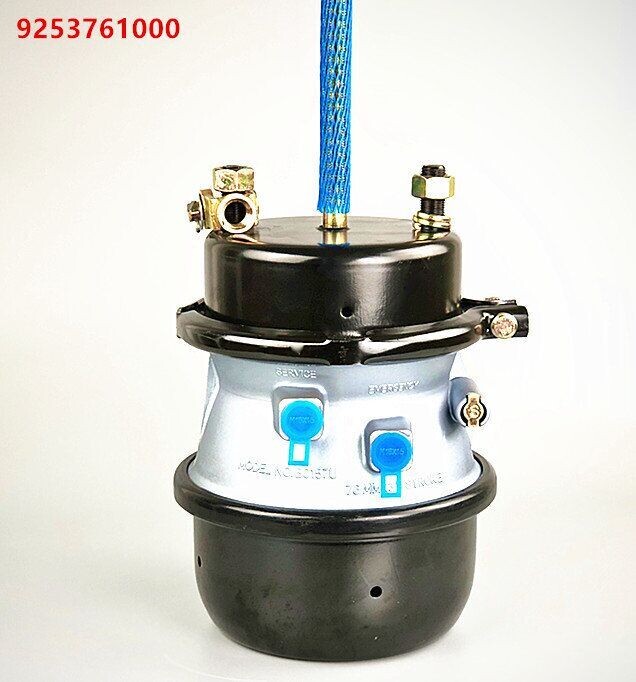

9253761000 OE T24/30 brake chamber/Tristop D-Cylinder

Name:9253761000 OE T24/30 brake chamber/Tristop D-Cylinder

Specifications:

• Bolt lengths
  38.0 mm
• Bolt threads
  M16 x 1.5
• Distance between bolts
  120.6 mm
• Max. operating pressure
  10.2/8.5 bar
• Output force 3
  7000 N
• Output force M
  9200 N
• Port Angle
  90°
• Port thread 11
  M16 x 1.5
• Port thread 12
  M16 x 1.5
• Port threads
  M16 x 1.5
• Push-rod length
  213 mm
• Push-rod thread
  M16 × 1.5
• Release pressure
  4.7 bar
• Return-spring force
  130 N
• Stroke
  75/75 mm
• Temperature range
  -40°C to +80°C
• Thread length
  213 mm
• Total length
  363.0 mm
• Type
  24/30
• Type of operation
  Cam
• Version
  Without boot
• Yoke
  Without (M 16x1.5)
• Calculated Volume (dm³)
  25.387
• Size (mm x mm x mm)
  576 x 215 x 205
• Weight (kg)
  9.416
• Weight (lb)
  20.759
• MOQ:50PCS
