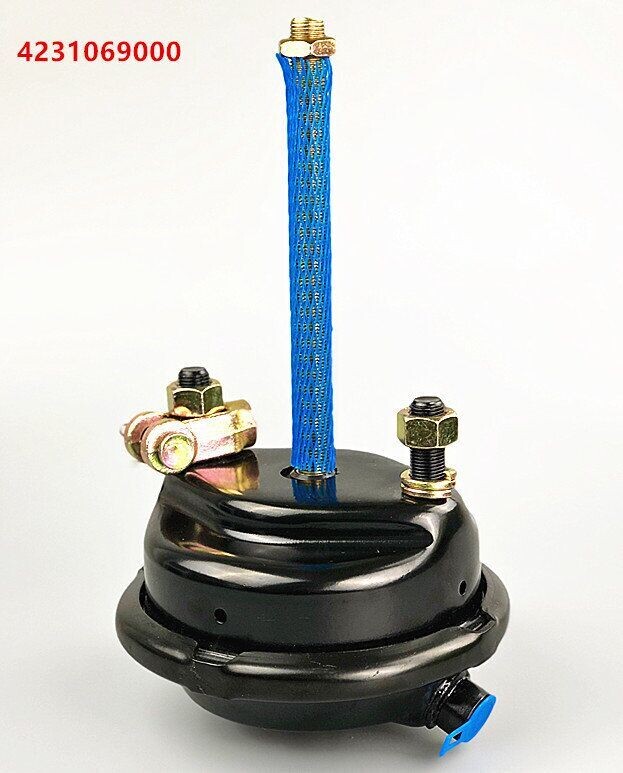

4231069000 brake chamber T20

Name:4231069000 brake chamber T20

Specifications:

• Product Category
  Device
• Bolt lengths
  34.5 mm
• Bolt threads
  M16 x 1.5
• Clamp Band
  174 mm
• Clamp band position
  -45°
• Distance between bolts
  120.6 mm
• Max. operating pressure
  8.5 bar
• Operating pressure
  8.5 bar
• Output force
  8200 N
• Output force M
  8200 N
• Port (Side)
  M16 x 1.5 JED-152
• Port (Top)
  M16 x 1.5 JED-152
• Port Angle
  180°
• Port threads
  M16 x 1.5
• Push-rod length
  186 mm
• Push-rod thread
  M16 x 1.5
• Return-spring force
  100 N
• Stroke
  75.0 mm
• Temperature range
  -40°C to +80°C
• Thread length
  186 mm
• Total length
  134.0 mm
• Type
  20
• Type of operation
  Cam
• Version
  Without boot
• Yoke
  Without
• Calculated Volume (dm³)
  9.8
• Size (mm x mm x mm)
  175 x 175 x 320
• UPC
  193133422808
• Weight (kg)
  3.081
• Weight (lb)
  6.7924
• MOQ:50PCS
